DST & Pressure Transient Analysis
PulseTech
Drill stem test & pressure-transient analysis, end to end.
Overview

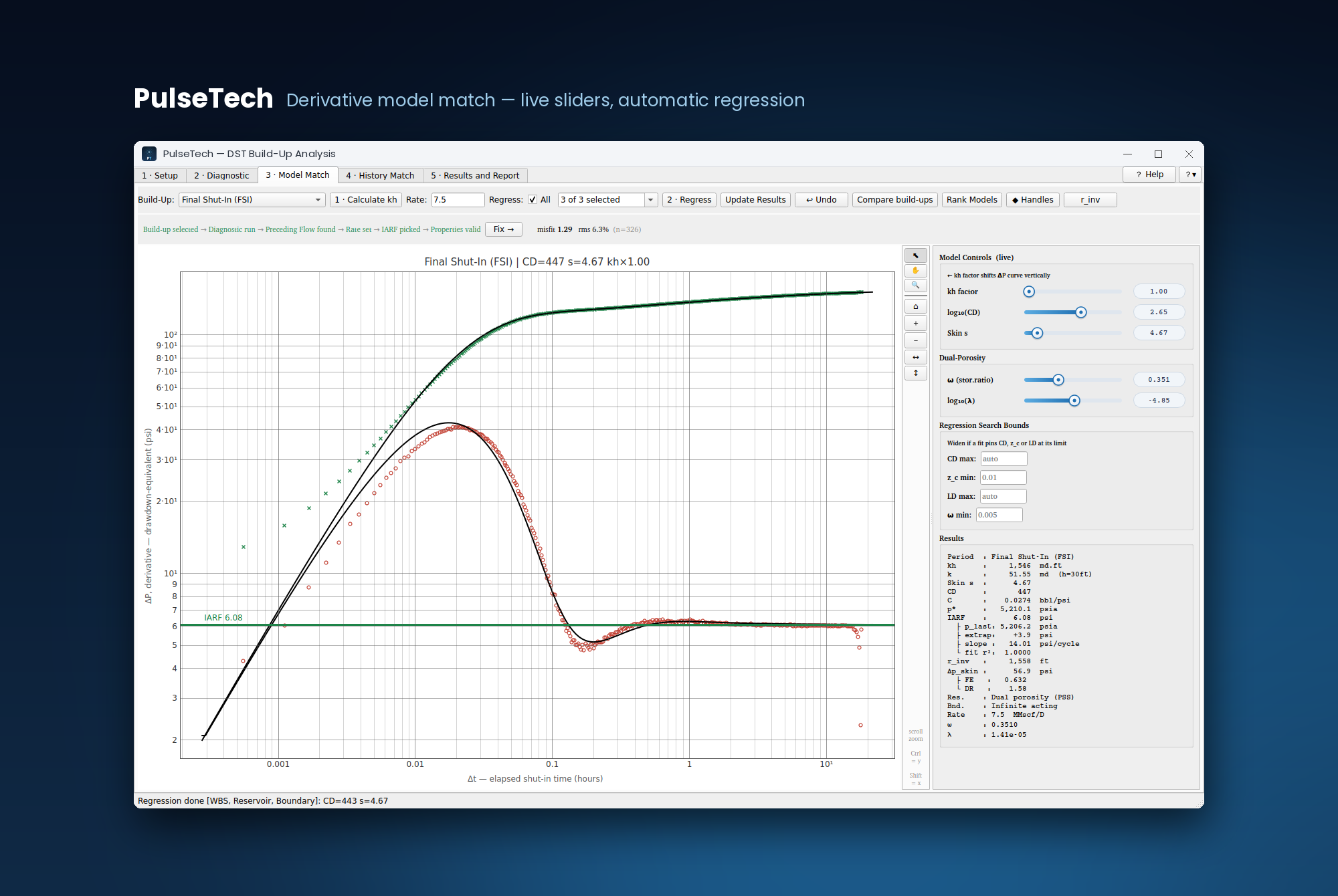

PulseTech takes a well test from raw memory-gauge data to a finished interpretation. Import gauge data, automatically detect flow and shut-in periods, and move straight into Bourdet-derivative diagnostics with automated infinite-acting radial flow (IARF) picking.

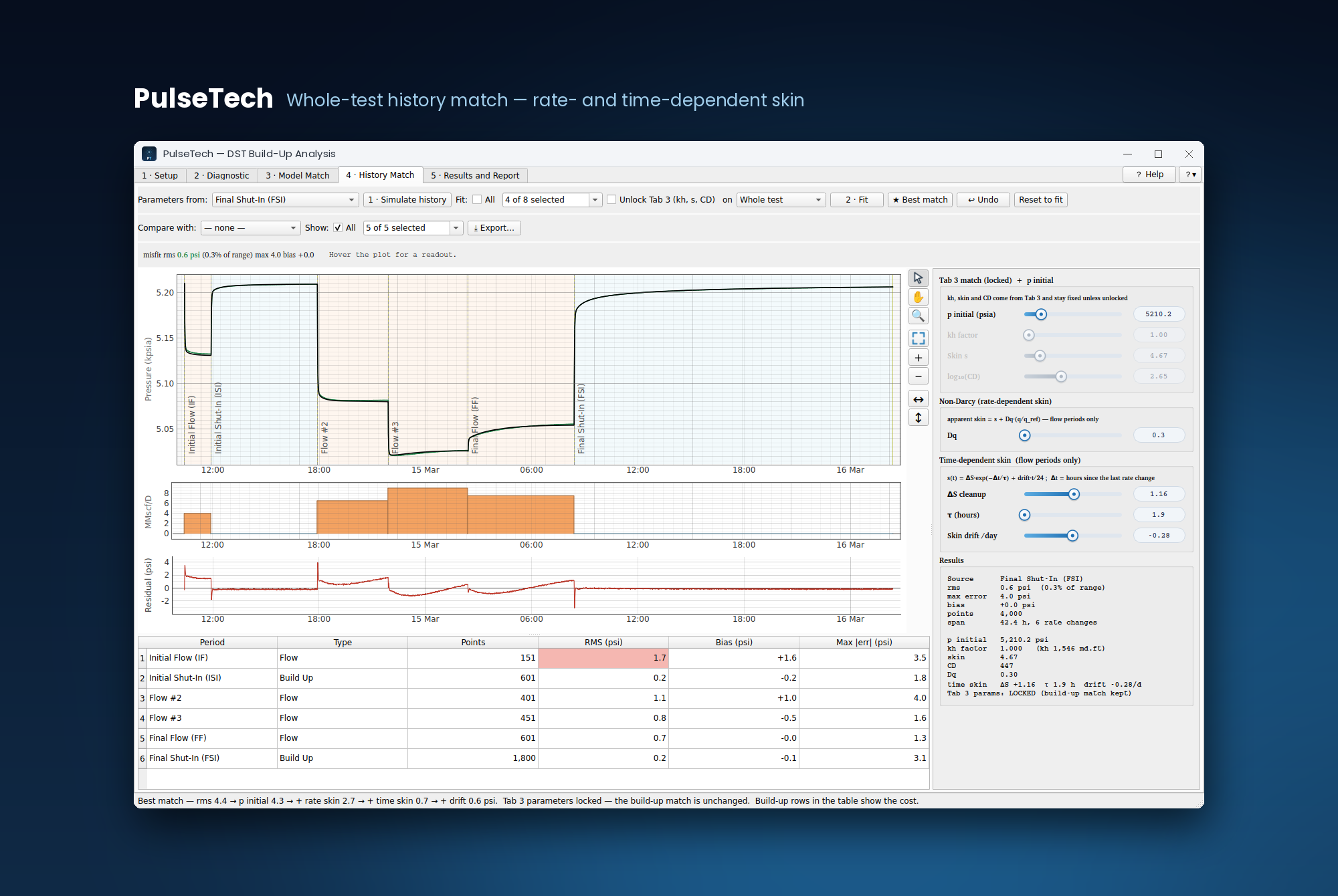

Model matching supports both analytical type-curve fitting and full history matching across the whole test, including true multi-rate superposition rather than a single lumped producing time — so late-time behavior on complex, multi-period tests matches what you'd get from reference software.
Every analysis ends in a formatted A4 PDF report, built for handing straight to a client or partner.
Capabilities
- Automatic flow/shut-in period detection from raw gauge data
- Bourdet derivative diagnostics with automated IARF picking
- Analytical type-curve matching and whole-test history matching
- True multi-rate superposition (not single-lumped-tp equivalent time)
- Live Horner and MDH plots with fit line and extrapolated p*
- Adjustable Bourdet smoothing, boundary and wellbore-storage search bounds
- One-click A4 PDF report generation
Screenshots
Walkthrough
